IP-PBX with Universal Connectivity and Mobile Extensions

IP-PBX with Universal Connectivity and Mobile Extensions

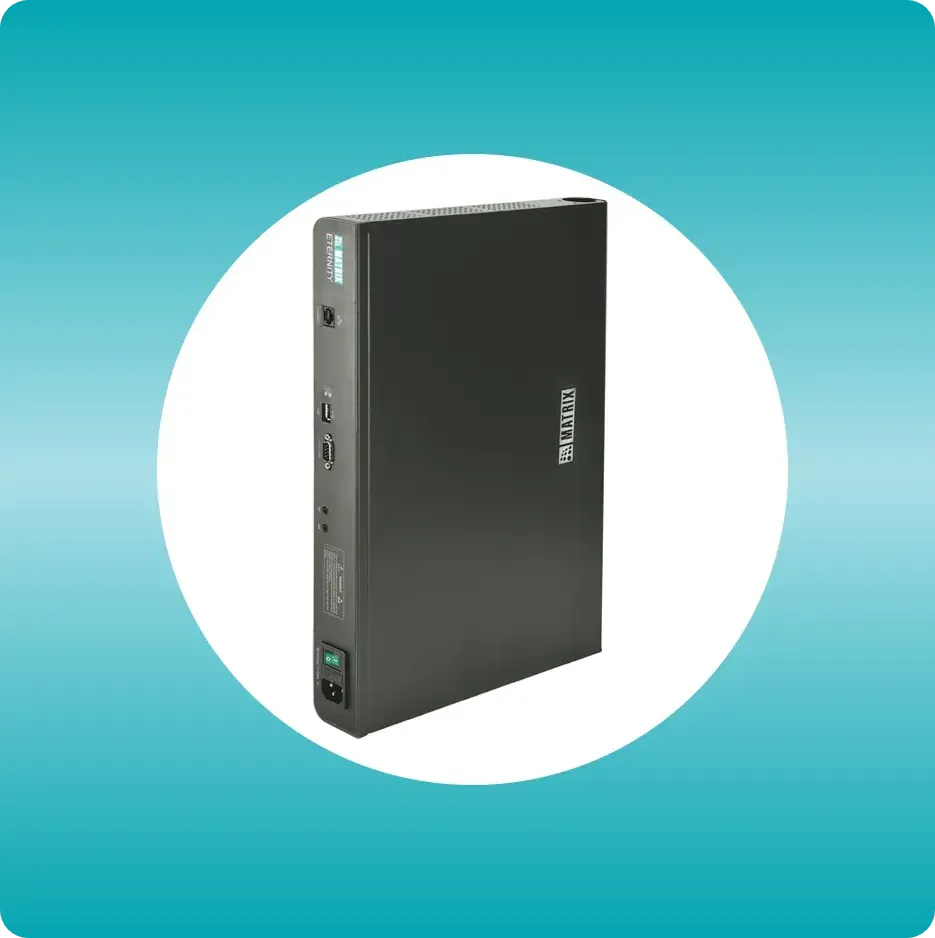

ETERNITY PENX6SAC

  • Universal Slots: 6
  • Max. IP Users: 100
  • Max. TDM Ports: 48
  • Built-in Ports: 5 IP Users, 4 VoIP & 4 VMS
  • Note: All ETERNITY PENX6SAC with SARVAM UCS SMB (Factory Loaded)
  • Note: Free IP USER can only be used when NX DBM VOCODER64 is installed
  • Note: Free VoIP Channel and VMS Channel can be used with NX DBM VOCODER64 & NX DBM VMS64, respectively
Category:

Description

ETERNITY PENX is an integrated IP-PBX with seamless mobility, designed for the SMB market segment. This new PENX platform offers higher RAM and Flash with enhanced features of the SARVAM Unified Communication Server.

Underlying the SARVAM application, ETERNITY PENX offers the flexibility to choose from a variety of User Terminals such as Analog Phones, Digital Key Phones, IP Phones, SIP Softphones, SIP Handsets, and even mobile phones as office extensions.

We know you would want to know how it works for your firm and hence we have made it easier for you to understand the deployment procedure as well as the benefits it brings to your corporate table.

SPECIFICATIONS

System Capacity ETERNITY PENX
Universal slots 6
FXS Ports (SLT) 48
DKP Port 16
IP User 100
FXO Ports (CO) 16
PRI ports 2
GSM/3G/LTE Ports 8
SIP Trunks 50
Max. VoIP Channel 64
Max. VMS Channel 16
Max. IP to IP Call (Transcoding) 32
Max. IP to IP Call (DRTP/Relay RTP) 64
Max. IP to TDM Call 64
Max. TDM to TDM Non-Blocking
No of Voice Module 16
Simultaneous Voice Module Playback 5
Max. Audio conference Participants (System Wide) 48
Max. Audio conference Participants (In a single Multi-Party Conference) 15
Max. Number of Simultaneous 3-party conference 16
VoIP Protocol SIP, SDP, RTP, SRTP
Network Protocol IPV6, IPV4, TCP, UDP, VLAN, DHCP, PPPoE, QoS, STUN
Transport Protocol UDP, TCP, TLS
Codec G.711(A-law, μ-law), G.723,G.729AB,GSM-FR,iLBC
DTMF RTP(RFC2833), SIP Info, IN-Band
LAN Gigabit port
WAN Gigabit port
Voicemail Yes
Call Recording 2170 Hr.
Max. External Storage 32GB
Inter USB Port 1
External USB Port 1
Environment Operation Range: 0°C to 45°C,
Storage Range: -20°C to +70°C,
Operating Humidity: 5-95% RH Non-Condensing
Mounting 1U Rack Mount
