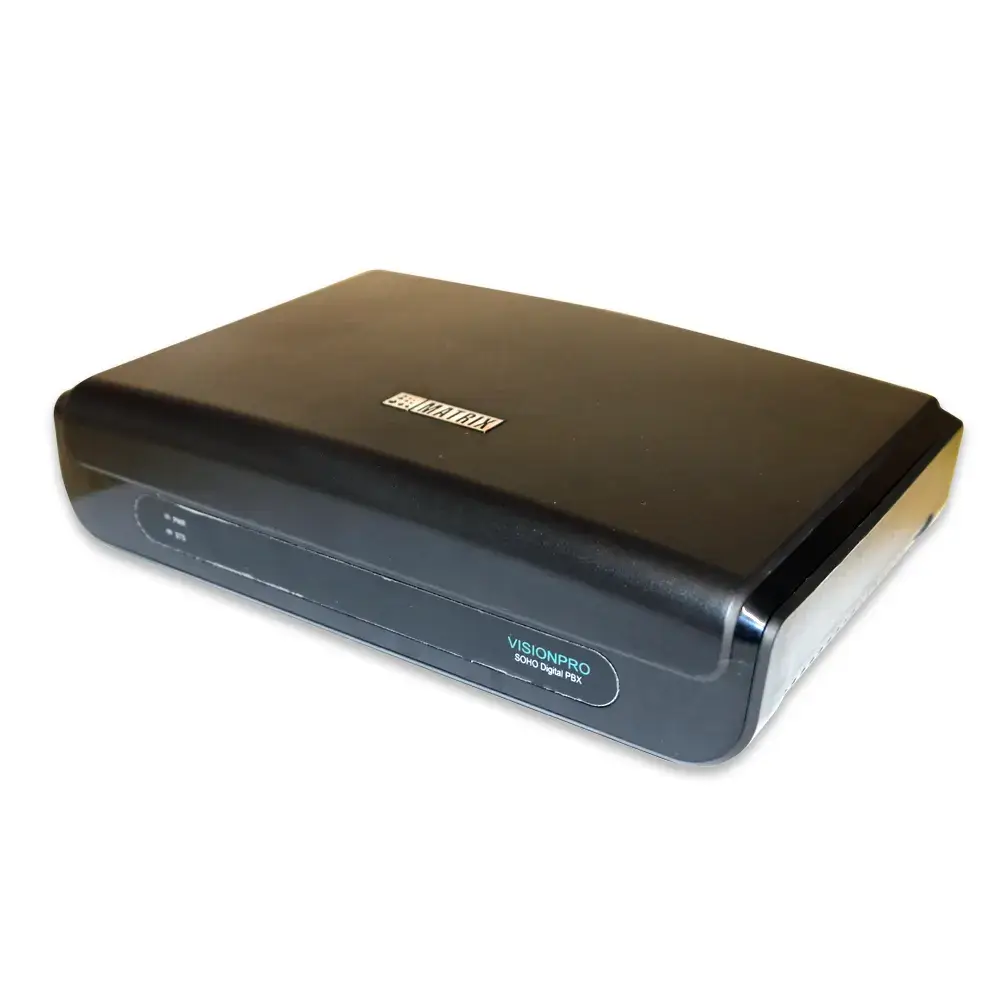

Matrix Digital PBX with 4 Trunks and 12 Analog Extensions

VISIONPRO412

  • 40+ Value Added Call Attributes
  • PCM/TDM, Digital Switching, 100% Non-Blocking
  • 16-Bit DSP Processor
  • DTMF and Pulse Dialing
  • Over Voltage Secondary Protection
  • Dimensions (mm): Width 231 x Height 162.5 x Depth 55
Category:

Description

Seamless communication is critical for every organization to function efficiently. Matrix VISIONPRO, “The Digital PBX for Small Offices” – is a field-proven Telecom system that helps you strengthen business communication.

This digital PBX offers value-added features like reducing communication costs, increasing productivity, and simplifying business processes with its efficient call management solution.

Built around DSP-based architecture with innate single port power fail transfer, Dual Tone Multi-Frequency Tone (DTMF), Frequency Shift Key (FSK), and Command Line Interface (CLI) support. Matrix VISIONPRO is a reliable, stable, robust, and maintenance-free solution for hospitals and hotels.

SPECIFICATIONS

VISIONPRO412
Digital PBX with 4 Trunks and 12 Analog Extensions



Parameters Specifications
Type of Switching PCM/TDM, Digital Switching, 100% Non-blocking
Processor 16-bit DSP
Signaling Loop Start
Dialing DTMF and Pulse (10/20PPS)
Off-Hook AC Impedance 600/900/Complex
Off-Hook Current 39mA Max.
Loop Limit 1800Ω Max (Excluding Telephone)
On-Hook Voltage (Tip/Ring) -48V nominal
DTMF detection ITU-T Q.24
Return Loss >18dB
Longitudinal Balance >50dB
Transmission Level Adjust Tx Gain: -12dB to +6dB, Rx Gain: -12dB to +6dB
Ringing Trapezoidal 50VRMS/25Hz and Sinusoidal 52VRMS/25Hz
REN 3
CLI Presentation DTMF, FSK ITU-T V.23 and FSK Bellcore 202
Protection Over Voltage Secondary Protection

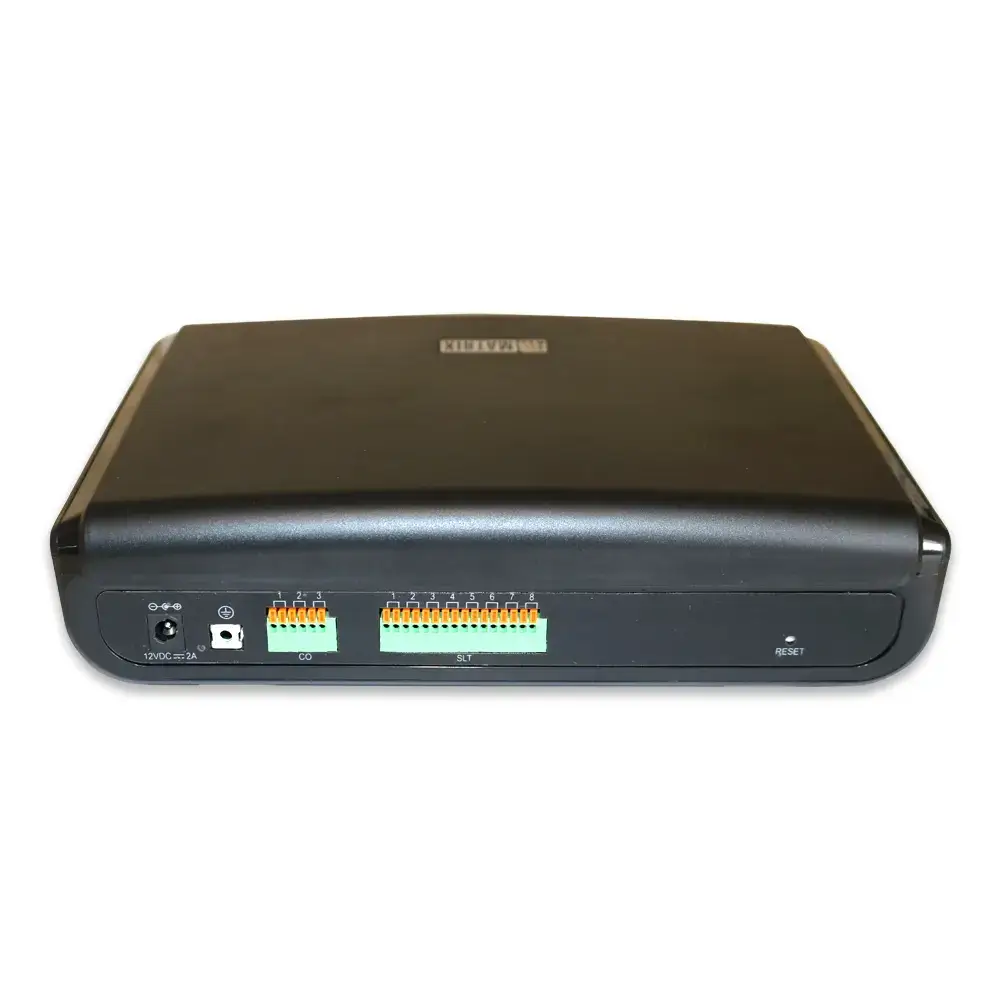

Physical Connector 2.54mm Push Type connector
CO (Central Office)/Two-Wire Trunk (TWT)
Signaling Loop Start
Loop Limit 1200Ω
Off-Hook AC Impedance 600/900/Complex
Pulse Dialling 10/20 PPS
DTMF Dialling and Reception ITU-T Q.23 and Q.24
Return Loss >18dB
Longitudinal Balance >50dB
Transmission Level Adjust Tx Gain: -15dB to +10dB. Rx Gain: -15dB to + 10dB
CLI Reception DTMF, FSK ITU-T V.23 and FSK Bellcore 202
Call Maturity Delay and Polarity Reversal
Protection Over Voltage and Over Current Secondary Protection
Physical Connector Over Voltage Secondary Protection
Physical Connector 2.54mm Push Type connector
Input External Adapter 12V@2A for VISIONPRO 206, 308, 412
Dimensions (WxHxD) 23.1×16.25×5.5cm (10.5″x11.2″x3.1″)
Unit Weight 0.65 kg (1.43lbs)
Shipping Weight 3.5 kg (7.7lbs)
Installation Wall Mount
Operating Temperature 0°C to 45 °C (+32°F to +122°F)
Operating Humidity 95% RH, Non-Condensing
