Matrix Unified IP Communication – Enterprise

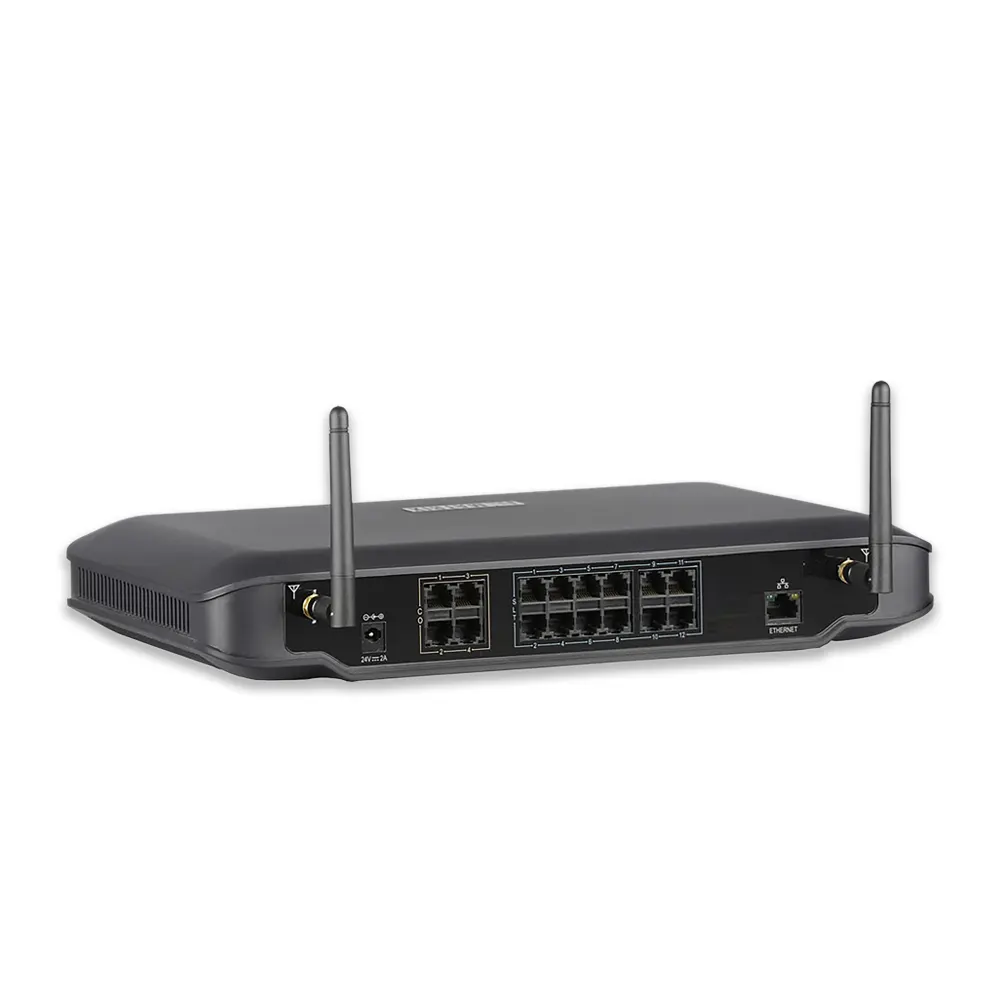

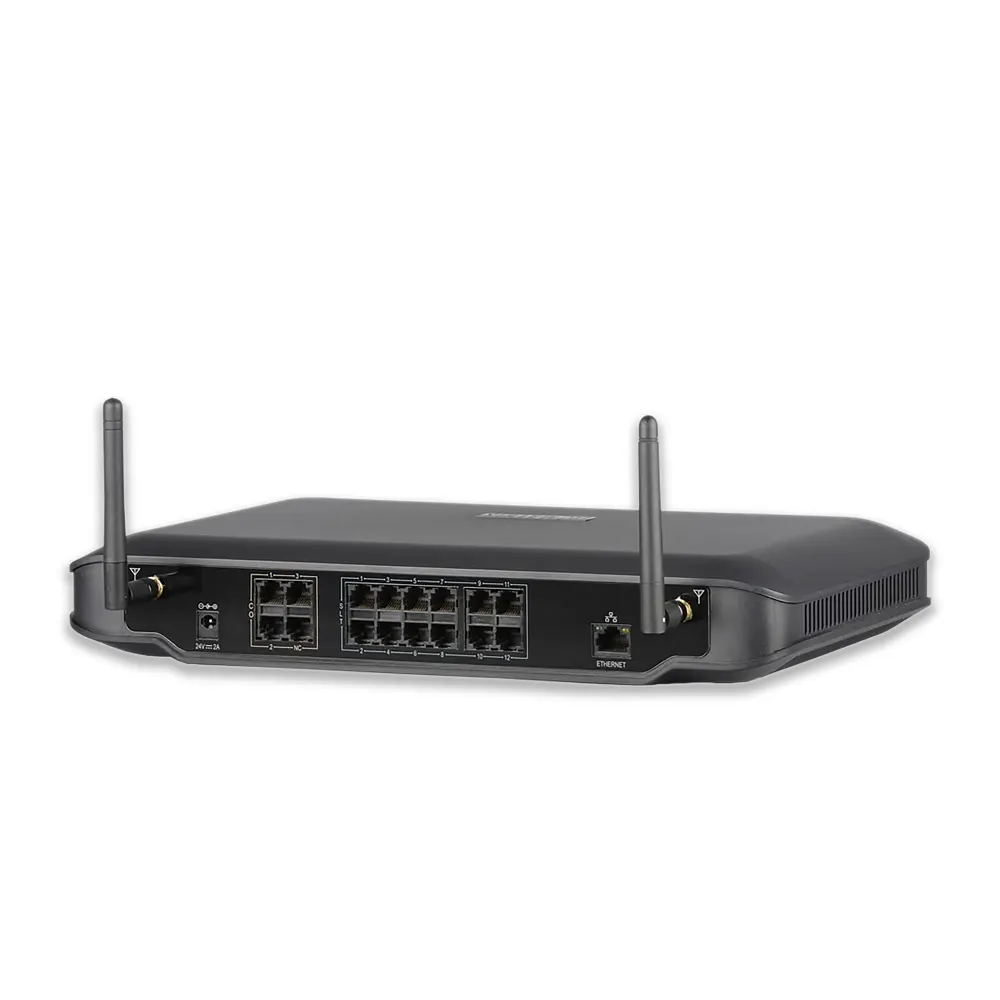

ETERNITY NENX312

  • 3 FXO Ports
  • 12 FXS Ports
  • 2 GSM/3G/4G Ports
  • 50 IP Users
  • 4 Voicemail Channels
  • Dimensions (mm): Width 320.2 x Height 51.1 x Depth 208.1
Category:

Description

Small Offices and Home Offices require efficient communication solution that is cost-effective and reliable to enhance their productivity.

Matrix brings you an exclusive IP-PBX variant ETERNITY NENX312 that has been developed with years of research and market analysis.

Matrix ETERNITY NENX312 establishes integrated interfaces for FXO (CO), GSM/3G/4G, and VOIP networks. Its resilient design algorithm intelligently selects the most cost-effective route to place local, mobile, or long-distance calls and reduces telephony costs significantly.

Its all-inclusive built-in nature and smart collaborative approach are designed to address different corporate communication needs.

SPECIFICATIONS

Particulars NENX312
FXO Ports (CO) 3
FXS Ports (SLT) 12
GSM/3G Ports 2
IP Users 50
VoIP Trunks (SIP) 8
Max. VoIP CHNL 8
Max. VMS CHNL 4
Max. IP to IP Call 25
Max. IP to TDM Call 8
Conference 6 party
Video Calls 8
VoIP Protocol SIP, SDP, RTP, SRTP
Network Protocol IPv6, IPv4, TCP, UDP, DHCP, VLAN, DynDNS, PPPoE, QoS, STUN
Transport Protocol UDP, TCP, TLS
Codec G.711(A-law, μ-law), G.723, G.729AB, GSM-FR, iLBC
DTMF RTP (RFC2833), SIP Info, IN-Band
LAN 1 × 10/100 Mbps
Voicemail Yes
T.38 Fax Yes
Max. External Storage 32GB
USB 1 (With Factory fitted 8 GB Pen-drive)
Power 24VDC 2.5Amp
Size 320.2 x 51.1 x 208.1 mm
Power Consumption 15W
Environment Operation Range: 0°C to 45°C, Storage Range: -20°C to 65°C,
Operating Humidity: 5-95% RH Non-Condensing
Mounting 1U Rack Mounting
